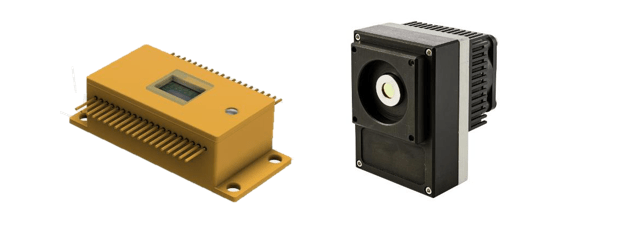

VIGO Photonics 提供針對不同波長的四象限和多元線陣探測器模塊，基于HgCdTe材料，集成了跨阻抗、直流耦合四通道前置放大器、TE制冷和風扇。四象限模塊適合用于測量光束的移動或作為對準系統的反饋；多元線陣探測器多用于非接觸式的溫度測量，常用于鐵路運輸。除標準5μm和10.6μm模塊，根據不同應場景，可接受定制。
四象限模塊
1、QM-5，四象限，制冷模塊，光敏面4×(0.2×0.2)
| Specification (Ta = 20°C) | |
| Parameter | Typical value |
| Optical characteristics | |
| Cut-on wavelength λcut-on (10%), μm | 3.5±0.5 |
| Peak wavelength λpeak, μm | 4.5±0.5 |
| Optimum wavelength λopt, μm | 5 |
| Cut-off wavelength λcut-off (10%), μm | 6.0±0.5 |
| Detectivity D*(λpeak), cm·Hz1/2/W | ≥7.0×109 |
| Detectivity D*(λopt), cm·Hz1/2/W | ≥6.8×109 |
| Output noise density vn(100 kHz), nV/Hz1/2 | ≤500 |
| Electrical parameters | |
| Voltage responsivity Rv(λpeak, RL = 1 MΩ*)), V/W | ≥1.7×105 |
| Voltage responsivity Rv(λopt, RL = 1 MΩ*)), V/W | ≥1.6×105 |
| Low cut-off frequency flo, Hz | DC |
| High cut-off frequency fhi, Hz | ≥1M |
| Output impedance Rout, Ω | 50 |
| Output voltage swing Vout (RL = 1 MΩ*)), V | 0 – 4 |
| Output voltage offset Voff, mV | max ±20 |
| Power supply voltage Vsup, VDC | 7.5 |
| Power consumption, W | max 6 |
| Other information | |
| Active elements material | epitaxial HgCdTe heterostructure |
| Active areas A, mm×mm | 4×(0.2×0.2) |
| Distance between active elements, mm | 0.02 |
| Window | pSiAR |
| Acceptance angle Φ | ~70° |
| Ambient operating temperature Ta, °C | 10 to 30 |
| Signal output sockets | 4×MCX |
| Power supply socket | DC 2.1/5.5 |
| Mounting hole | M4 |
| Fan | yes |
2、QM-10.6，四象限，非制冷模塊，光敏面4×(1×1)
| Specification (Ta = 20°C) | |
| Parameter | Typical value |
| Optical characteristics | |
| Cut-on wavelength λcut-on (10%), μm | 3.0±1.0 |
| Peak wavelength λpeak, μm | 8.0±2.0 |
| Optimum wavelength λopt, μm | 10.6 |
| Cut-off wavelength λcut-off (10%), μm | 12.0±1.0 |
| Detectivity D*(λpeak), cm·Hz1/2/W | ≥1.0×107 |
| Detectivity D*(λopt), cm·Hz1/2/W | ≥4.5×106 |
| Output noise density vn(100 kHz) μV/Hz1/2 | ≤4.5 |
| Electrical parameters | |
| Voltage responsivity Rv(λpeak, RL = 1 MΩ*)), V/W | ≥2.2×102 |
| Voltage responsivity Rv(λopt, RL = 1 MΩ*)), V/W | ≥1.1×102 |
| Low cut-off frequency flo, Hz | DC |
| High cut-off frequency fhi, Hz | ≥1M |
| Output impedance Rout, Ω | 50 |
| Output voltage swing Vout(RL = 1 MΩ*)), V | 0 – 4 |
| Output voltage offset Voff, mV | max ±20 |
| Power supply voltage Vsup, VDC | 7.5 |
| Power consumption, W | max 6 |
| Other information | |
| Active elements material | epitaxial HgCdTe heterostructure |
| Active areas A, mm×mm | 4×(1×1) |
| Distance between active elements, mm | 0.15±0.1 |
| Window | none |
| Acceptance angle Φ | ~70° |
| Ambient operating temperature Ta, °C | 10 to 30 |
| Signal output sockets | 4×MCX |
| Power supply socket | DC 2.1/5.5 |
| Mounting hole | M4 |
| Fan | yes |
多元線陣模塊
1、4EM-5，1×4線陣，制冷模塊，光敏面4×(0.2×0.2)
| Specification (Ta = 20°C) | |
| Parameter | Typical value |
| Optical characteristics | |
| Cut-on wavelength λcut-on (10%), μm | 3.5±0.5 |
| Peak wavelength λpeak, μm | 4.5±0.5 |
| Optimum wavelength λopt, μm | 5 |
| Cut-off wavelength λcut-off (10%), μm | 6.0±0.5 |
| Detectivity D*(λpeak), cm·Hz1/2/W | ≥7.0×109 |
| Detectivity D*(λopt), cm·Hz1/2/W | ≥6.8×109 |
| Output noise density vn(100 kHz), nV/Hz1/2 | ≤500 |
| Electrical parameters | |
| Voltage responsivity Rv(λpeak, RL = 1 MΩ*)), V/W | ≥1.7×105 |
| Voltage responsivity Rv(λopt, RL = 1 MΩ*)), V/W | ≥1.6×105 |
| Low cut-off frequency flo, Hz | DC |
| High cut-off frequency fhi, Hz | ≥1M |
| Output impedance Rout, Ω | 50 |
| Output voltage swing Vout (RL = 1 MΩ*)), V | 0 – 4 |
| Output voltage offset Voff, mV | max ±20 |
| Power supply voltage Vsup, VDC | 7.5 |
| Power consumption, W | max 6 |
| Other information | |
| Active elements material | epitaxial HgCdTe heterostructure |
| Active areas A, mm×mm | 4×(0.2×0.2) |
| Distance between active elements, mm | 0.05 |
| Window | pSiAR |
| Acceptance angle Φ | ~70° |
| Ambient operating temperature Ta, °C | 10 to 30 |
| Signal output sockets | 4×MCX |
| Power supply socket | DC 2.1/5.5 |
| Mounting hole | M4 |
| Fan | yes |
2、4EM-5，1×32線陣，制冷模塊，光敏面4×(0.2×0.2)
| Specification (Ta = 20°C, Vb = 0 mV) | Detection module type | |
| Parameter | ||
| 32EM-5-01 | 32EM-5-02 | |
| Optical characteristics | ||
| Cut-on wavelength λcut-on (10%), μm | ≤2.0 | 3.7±0.2 |
| Peak wavelength λpeak, μm | 4.25±0.2 | 4.75±0.2 |
| Optimal wavelength λopt, μm | 5 | 5 |
| Cut-off wavelength λcut-off (10%), μm | 5.6±0.2 | 5.8±0.2 |
| Detectivity D*(λpeak), cm·Hz1/2/W | ≥3.5×109 | ≥2.4×109 |
| Detectivity D*(λopt), cm·Hz1/2/W | ≥2.2×109 | ≥2.2×109 |
| Electrical parameters | ||
| Voltage responsivity Rv(λpeak, RLoad = 1 MΩ), V/W | ≥3.5×104 | ≥5.0×104 |
| Voltage responsivity Rv(λopt, RLoad = 1 MΩ), V/W | ≥2.2×104 | ≥4.6×104 |
| Low cut-off frequency flo, Hz | DC | DC |
| High cut-off frequency fhi, kHz | ≥400 | ≥650 |
| Output impedance Rout, Ω | 50 | 50 |
| Output voltage swing Vout (RLoad = 1 MΩ), V | -1 (negative output) |
-1 (negative output) |
| Output voltage offset Voff, mVDC | max -200 | max -200 |
| Power supply voltage Vsup, VDC | 5 | 5 |
| Other information | ||
| Active elements material | epitaxial HgCdTe heterostructure | |
| Number of elements | 1×32 linear array | |
| Active area of single element A, mm×mm | 0.125×1 | 0.1×0.1 |
| Distance between active elements, μm | 25 | 50 |
| Window | pAl2O3AR | |
| Acceptance angle Φ | ~70° | |
| Ambient operating temperature Ta, °C | 10 to 30 | |
應用領域
- CO2激光（10.6μm）測量
- 激光功率監控，激光束輪廓和定位
- 激光校準
- 光譜學（氣體檢測，呼吸分析）
- 慢速和快速非接觸式溫度測量（鐵路運輸、工業和實驗室過程監控）
- 光學分揀系統
- 激光束輪廓和定位
- 火焰和爆炸檢測
- 國防和安全
- 燃燒過程控制
